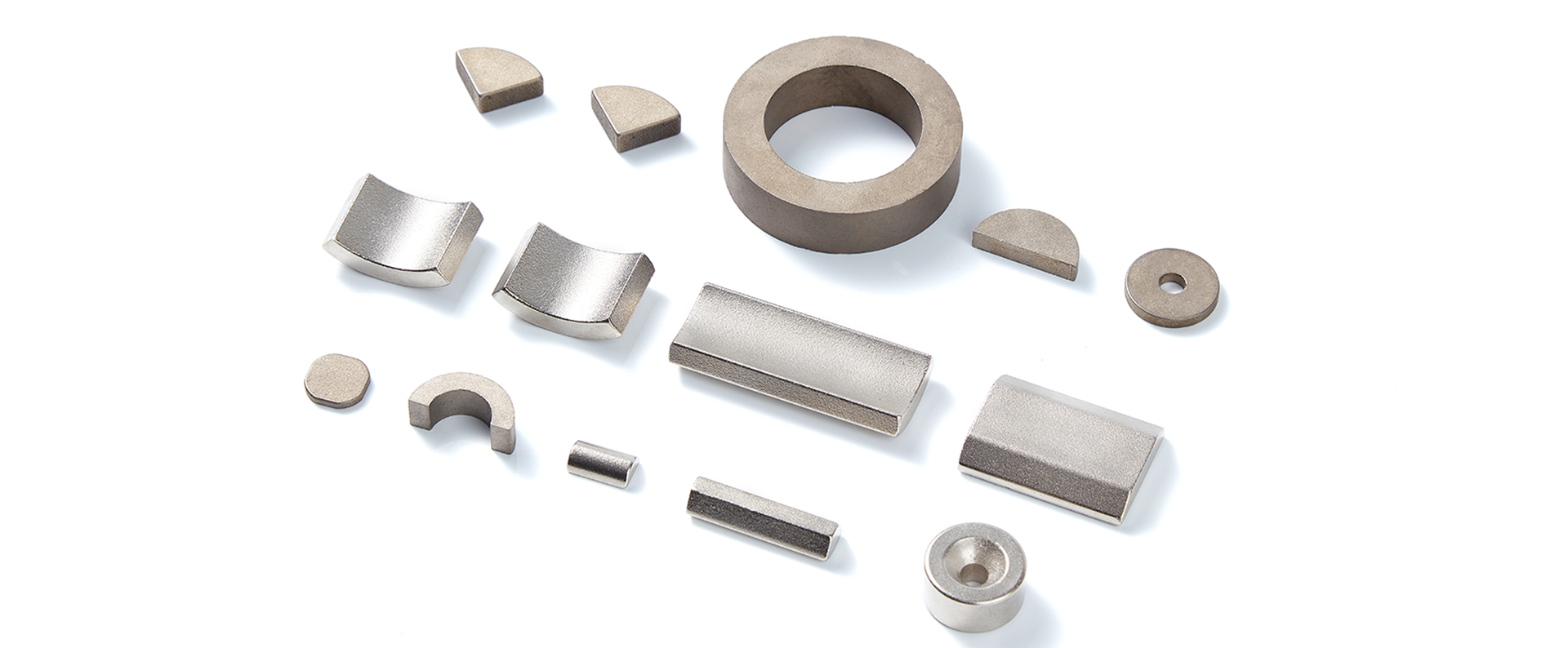

Sintered Samarium Cobalt Magnet
烧结钐钴磁体
Samarium-cobalt (SmCo) is the second-generation rare-earth permanent magnet. While its maximum energy product is lower than NdFeB, SmCo excels where NdFeB cannot operate — high temperatures up to 350 °C (550 °C for XGS-HT grades), corrosive or oxidising environments, and applications demanding the lowest reversible temperature coefficient of remanence.
AIC Engineering supplies the full SmCo range per GB/T 17951-2022: Sm₂Co₁₇ (SMG / HTS / LTS series), SmCo₅ (SM series), and ultra-high-temperature Sm₂Co₁₇ (XGS-HT up to 550 °C). Hcj above 1990 kA/m is standard across SMG-H grades for stable performance under demagnetising fields and elevated temperatures.
Because SmCo is intrinsically oxidation- and corrosion-resistant, no coating is required for most applications — a critical advantage in aerospace, defense, oil & gas, and medical equipment where coating failure would compromise reliability.
Key Features
Up to 350 °C Standard, 550 °C HT
XGS-HT grades operate at 550 °C — far beyond NdFeB or ferrite limits.
Low Temperature Coefficient
α(Br) as low as 0.005 %/°C for LTS low-temp-coefficient series — flux stable across wide ranges.
Intrinsic Corrosion Resistance
Metallic rare-earth alloy — no coating required, even in oxidising and humid environments.
High Hcj, Anti-Demagnetization
Hcj ≥ 1990 kA/m on SMG-H grades — stable under strong demagnetising fields and reverse pulses.
Magnetic Grades
Typical values at room temperature, sourced from the AIC Sintered SmCo performance data sheet (per GB/T 17951-2022). Full Sm₂Co₁₇ (SMG / HTS / LTS), SmCo₅ (SM), and XGS-HT series.
| Grade | Series | Remanence Br (mT) | Coercivity Hcb (kA/m) | Intrinsic Hcj (kA/m) | (BH)max (kJ/m³) | Max Op. Temp. (°C) |
|---|---|---|---|---|---|---|
| SMG-10H | Sm₂Co₁₇ | 580–710 | ≥ 422 | ≥ 1990 | 63–95 | 350 |
| SMG-12H | Sm₂Co₁₇ | 650–760 | ≥ 478 | ≥ 1990 | 79–111 | 350 |
| SMG-14H | Sm₂Co₁₇ | 710–830 | ≥ 525 | ≥ 1990 | 95–127 | 350 |
| SMG-16H | Sm₂Co₁₇ | 790–860 | ≥ 589 | ≥ 1990 | 119–143 | 350 |
| SMG-18H | Sm₂Co₁₇ | 830–890 | ≥ 605 | ≥ 1990 | 135–159 | 350 |
| SMG-20H | Sm₂Co₁₇ | 870–930 | ≥ 653 | ≥ 1990 | 151–175 | 350 |
| SMG-22H | Sm₂Co₁₇ | 910–980 | ≥ 693 | ≥ 1990 | 159–183 | 350 |
| SMG-22 | Sm₂Co₁₇ | 910–980 | ≥ 693 | ≥ 1592 | 159–183 | 350 |
| SMG-24H | Sm₂Co₁₇ | 960–1030 | ≥ 724 | ≥ 1990 | 175–199 | 350 |
| SMG-24 | Sm₂Co₁₇ | 960–1030 | ≥ 637 | ≥ 1433 | 175–199 | 350 |
| SMG-24M | Sm₂Co₁₇ | 960–1030 | 597–756 | 796–1273 | 175–199 | 250 |
| SMG-24L | Sm₂Co₁₇ | 960–1030 | 438–716 | 478–796 | 175–199 | 200 |
| SMG-26H | Sm₂Co₁₇ | 1010–1060 | ≥ 733 | ≥ 1990 | 191–215 | 350 |
| SMG-26 | Sm₂Co₁₇ | 1010–1060 | ≥ 733 | ≥ 1433 | 191–215 | 350 |
| S26M | Sm₂Co₁₇ | 1010–1060 | 597–820 | 796–1273 | 191–215 | 250 |
| SMG-26L | Sm₂Co₁₇ | 1010–1060 | 413–716 | 438–796 | 191–215 | 200 |
| SMG-28H | Sm₂Co₁₇ | 1040–1090 | ≥ 749 | ≥ 1990 | 207–231 | 350 |
| SMG-28 | Sm₂Co₁₇ | 1040–1090 | ≥ 749 | ≥ 1433 | 207–231 | 350 |
| SMG-28M | Sm₂Co₁₇ | 1040–1090 | 621–836 | 796–1273 | 207–231 | 250 |
| SMG-28L | Sm₂Co₁₇ | 1040–1090 | 438–716 | 478–796 | 207–231 | 200 |
| SMG-30H | Sm₂Co₁₇ | 1080–1110 | ≥ 773 | ≥ 1990 | 222–247 | 350 |
| SMG-30 | Sm₂Co₁₇ | 1070–1120 | ≥ 677 | ≥ 1194 | 222–247 | 350 |
| SMG-30M | Sm₂Co₁₇ | 1080–1110 | 621–836 | 796–1273 | 222–247 | 250 |
| SMG-30L | Sm₂Co₁₇ | 1080–1120 | 438–757 | 478–796 | 222–247 | 200 |
| SMG-32H | Sm₂Co₁₇ | 1120–1150 | ≥ 812 | ≥ 1990 | 239–255 | 350 |
| SMG-32 | Sm₂Co₁₇ | 1090–1150 | ≥ 677 | ≥ 955 | 238–262 | 350 |
| SMG-32M | Sm₂Co₁₇ | 1120–1150 | 717–844 | 796–1273 | 239–255 | 250 |
| SMG-32L | Sm₂Co₁₇ | 1120–1150 | 438–757 | 478–796 | 239–255 | 200 |
| SMG-34H | Sm₂Co₁₇ | 1150–1180 | ≥ 835 | ≥ 1990 | 255–270 | 300 |
| SMG-34 | Sm₂Co₁₇ | 1150–1180 | ≥ 835 | ≥ 1592 | 255–270 | 300 |
| HTS20H | Sm₂Co₁₇ HTS | 870–930 | ≥ 653 | ≥ 1990 | 151–175 | 530 |
| HTS22H | Sm₂Co₁₇ HTS | 910–980 | ≥ 693 | ≥ 1990 | 159–183 | 500 |
| HTS24H | Sm₂Co₁₇ HTS | 960–1030 | ≥ 724 | ≥ 1990 | 175–199 | 450 |
| LTS14 | Sm₂Co₁₇ LTS | 730–800 | ≥ 565 | ≥ 1592 | 103–127 | 300 |
| LTS16 | Sm₂Co₁₇ LTS | 790–860 | ≥ 613 | ≥ 1592 | 119–143 | 300 |
| LTS18 | Sm₂Co₁₇ LTS | 830–890 | ≥ 645 | ≥ 1592 | 135–159 | 300 |
| LTS20 | Sm₂Co₁₇ LTS | 870–930 | ≥ 653 | ≥ 1592 | 151–175 | 300 |
| SMG-4 | Sm₂Co₁₇ | 300–500 | ≥ 175 | ≥ 1592 | 16–48 | 350 |
| SMG-6 | Sm₂Co₁₇ | 500–700 | ≥ 287 | ≥ 1592 | 32–96 | 350 |
| SM-14 | SmCo₅ | 710–830 | ≥ 541 | ≥ 1592 | 95–127 | 250 |
| SM-16 | SmCo₅ | 790–860 | ≥ 605 | ≥ 1592 | 119–143 | 250 |
| SM-16H | SmCo₅ | 790–860 | ≥ 605 | ≥ 1990 | 119–143 | 250 |
| SM-18 | SmCo₅ | 840–910 | ≥ 620 | ≥ 1592 | 135–159 | 250 |
| SM-18H | SmCo₅ | 840–910 | ≥ 645 | ≥ 1990 | 135–159 | 250 |
| SM-20 | SmCo₅ | 870–930 | ≥ 653 | ≥ 1592 | 151–175 | 250 |
| SM-20H | SmCo₅ | 870–930 | ≥ 653 | ≥ 1990 | 151–175 | 250 |
| SM-22 | SmCo₅ | 910–980 | ≥ 693 | ≥ 1592 | 159–183 | 250 |
| SM-24 | SmCo₅ | 950–1010 | ≥ 717 | ≥ 1592 | 175–199 | 250 |
| XGS20HT | Sm₂Co₁₇ HT | 870–920 | 621–700 | ≥ 1592 | 143–159 | 550 |
| XGS22HT | Sm₂Co₁₇ HT | 920–970 | 653–732 | ≥ 1592 | 159–175 | 550 |
| XGS24HT | Sm₂Co₁₇ HT | 950–1000 | 685–772 | ≥ 1592 | 175–191 | 550 |
| XGS26HT | Sm₂Co₁₇ HT | > 1000 | ≥ 716 | ≥ 1592 | 191–207 | 550 |
Reversible temperature coefficient |α(Br)|: 0.03–0.05 %/°C (standard), 0.005–0.02 %/°C (LTS low-coefficient series). |β(Hcj)|: 0.2–0.3 %/°C. Density: 8.3–8.5 g/cm³.
Injection-Molded SmCo
SmCo₅ or Sm₂Co₁₇ powder in a polymer binder, injection-moulded to net shape for small, complex parts that need better temperature stability than bonded NdFeB. Typical values at room temperature, full SMB series.
| Grade | Remanence Br (mT) | Coercivity Hcb (kA/m) | Intrinsic Hcj (kA/m) | (BH)max (kJ/m³) | Max Op. Temp. (°C) |
|---|---|---|---|---|---|
| SmCo₅ (1:5) powder | |||||
| SMB-6(1:5) | 400 | 280 | 800 | 30–50 | < 120 |
| SMB-10(1:5) | 500 | 320 | 800 | 50–65 | < 120 |
| Sm₂Co₁₇ (2:17) powder | |||||
| SMB-10(2:17) | 600 | 360 | 800 | 65–80 | < 120 |
| SMB-12(2:17) | 700 | 400 | 800 | 80–95 | < 120 |
Injection-molded NdFeB and hybrid grades: see Injection-Molded NdFeB →
Powder-Metallurgy Process
From alloy design to magnetized, inspected parts — every step controlled in-house for batch consistency.
- Sm / Co / Fe / Cu / Zr alloy design
- Vacuum induction melting & casting
- Hydrogen decrepitation (HD)
- Jet milling to 3–5 μm powder
- Die or rubber-mould pressing in alignment field
- Vacuum sintering (1150–1250 °C)
- Solution treatment & ageing
- Blank density inspection
- EDM / grinding to ±0.05 mm tolerance
- Surface inspection (no coating needed)
- Pulse magnetizing to design direction
- 100% flux measurement & packaging
Typical Applications
Need a Custom SmCo Magnet?
Send your drawing or sample — our engineers will confirm grade (Sm₂Co₁₇ / SmCo₅ / XGS-HT / LTS), dimensions, magnetization, and temperature-stability target for your application.
Discuss Custom RequirementsProduct Manual
Sintered Samarium Cobalt (SmCo) Magnet Product Manualsamarium-cobalt-magnet.pdfDownload PDFFrequently Asked Questions
Answers to common questions about our magnets, customisation, ordering and shipping.
- What is the maximum temperature for SmCo magnets? +
- AIC high-temperature SmCo grades are stable up to 550 °C, far exceeding NdFeB, with low temperature coefficient of remanence — ideal for high-temperature industrial and aerospace applications.
- Is SmCo corrosion resistant? +
- Yes. SmCo has excellent corrosion and oxidation resistance and generally requires no coating, even in harsh environments where NdFeB would need protection.
- SmCo vs NdFeB — when to choose SmCo? +
- Choose SmCo when high-temperature stability (>150 °C), low temperature drift, or corrosion resistance matters more than raw strength. Choose NdFeB when maximum energy product and cost dominate.
